Eaton Moeller 010005 DILEM-10 24v 50hz 3 pole+1 N/O aux. Contactor
Part No.:
Eaton Moeller DILEM-10 24v 50hz 3 pole contactor with 1 Normally Open auxiliary contact
AC1 Rating maximum 20amp
AC3 Rating maximum 9amp
AC3 220-230vac 2.2kW
AC3 380-400vac 4.0kW
Accepts top mounting auxilliaries contacts, see Product files below
Used for Single or Three phase AC3 motor loads or AC1 resistive Lighting or Heating Loads

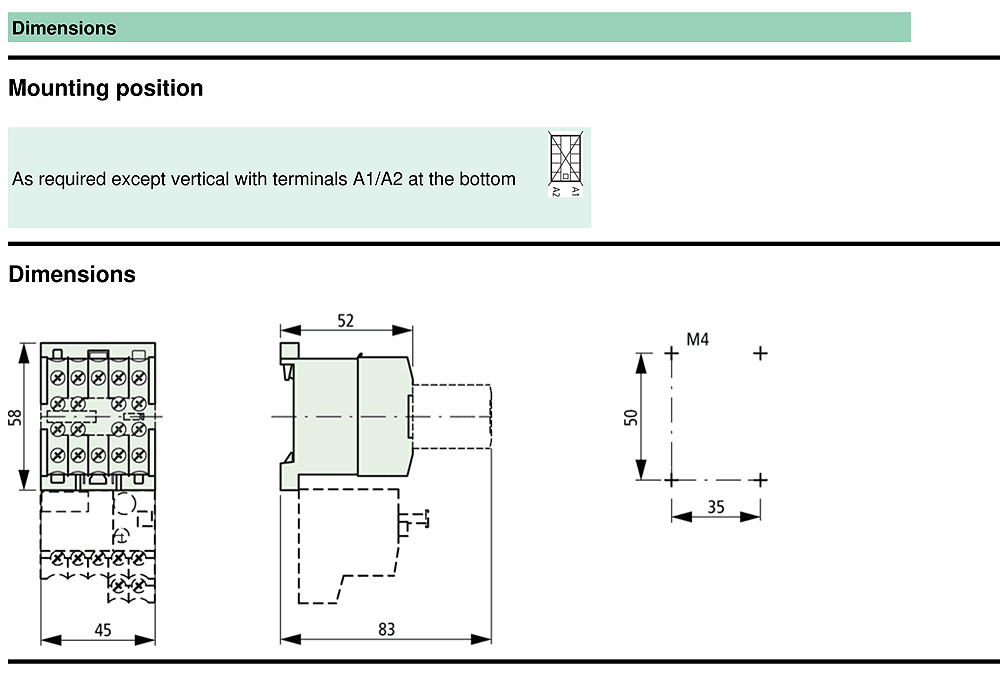

H. 58mm x W. 45mm x 52mm Stand off front to back without Front mounting auxiliary(with Auxiliary 83mm from base to top of auxiliary) See Prduct file below
Catalogue No1: DILEM-10(24V50HZ)
Catalogue No2: 010005

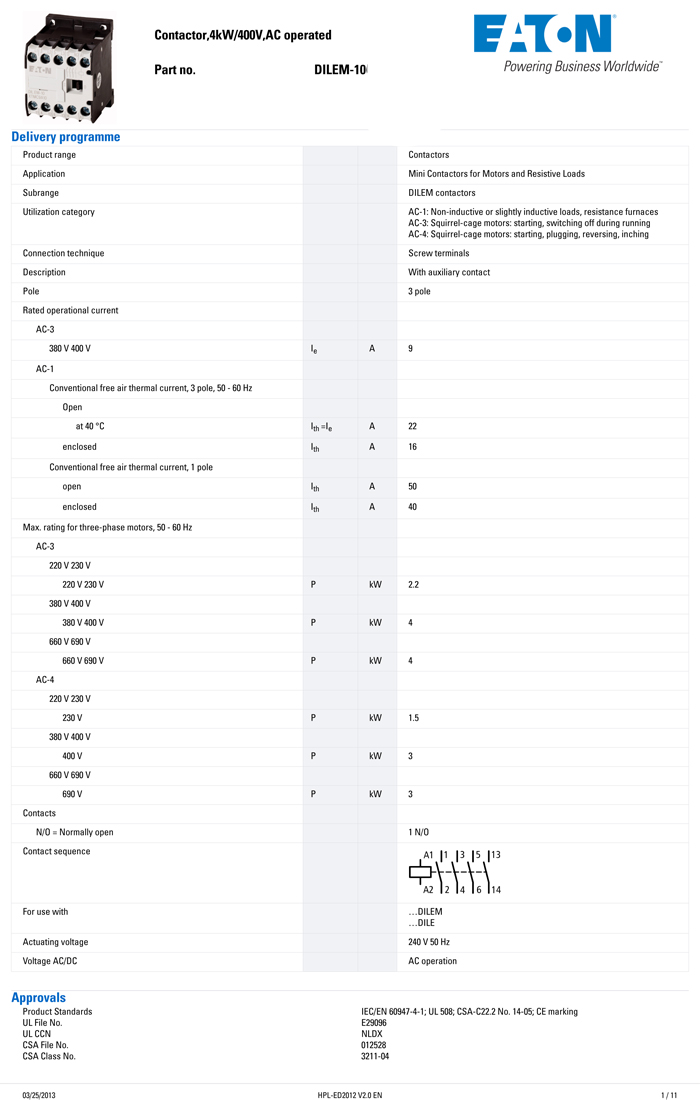

For more specification including size click on this product picture and scroll down to see Product files below
Miniature, economical contactors for small motors and loads. Approved for worldwide use. High degree of climatic approvals and large ambient temperature range AC and DC operated versions available
